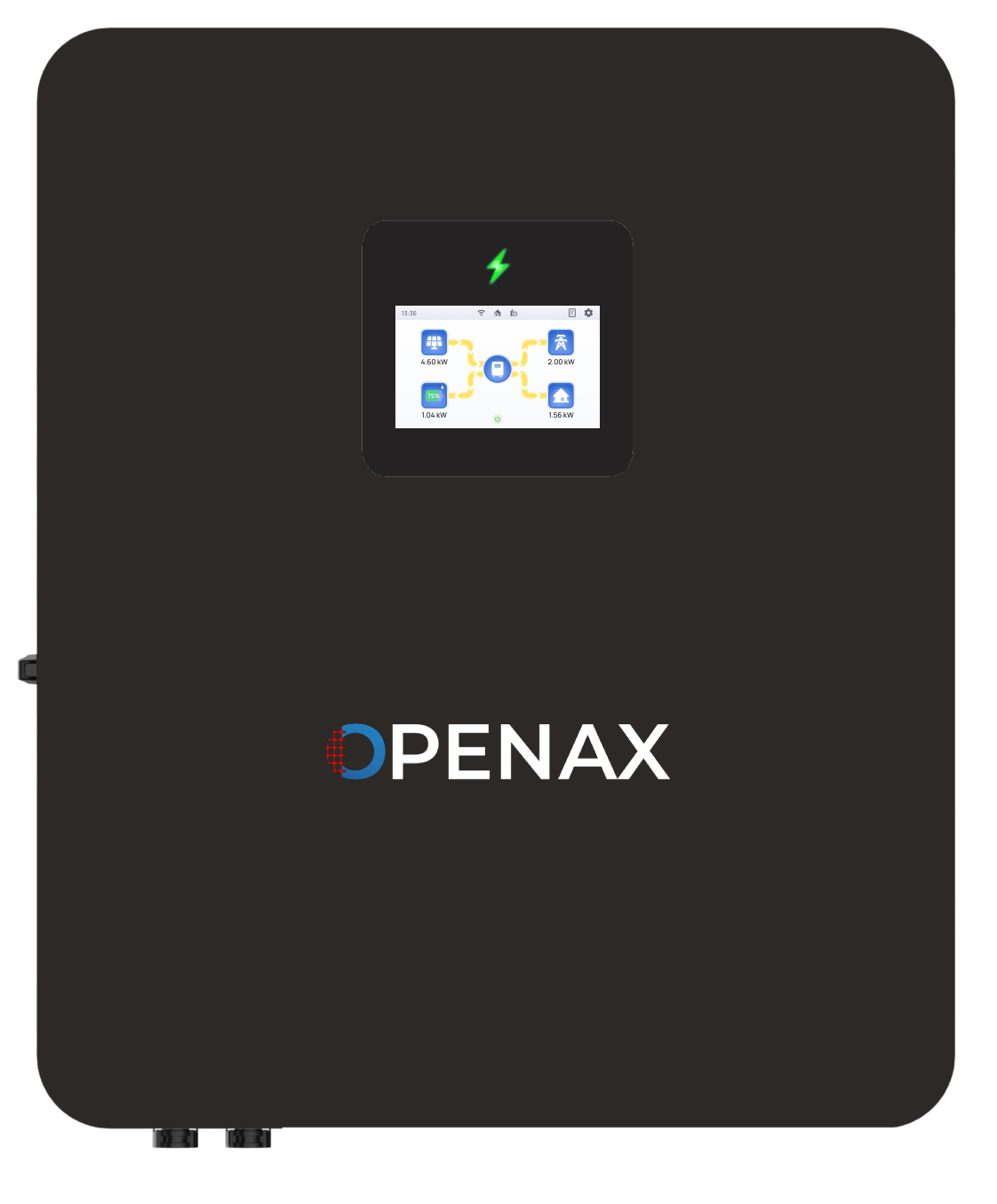

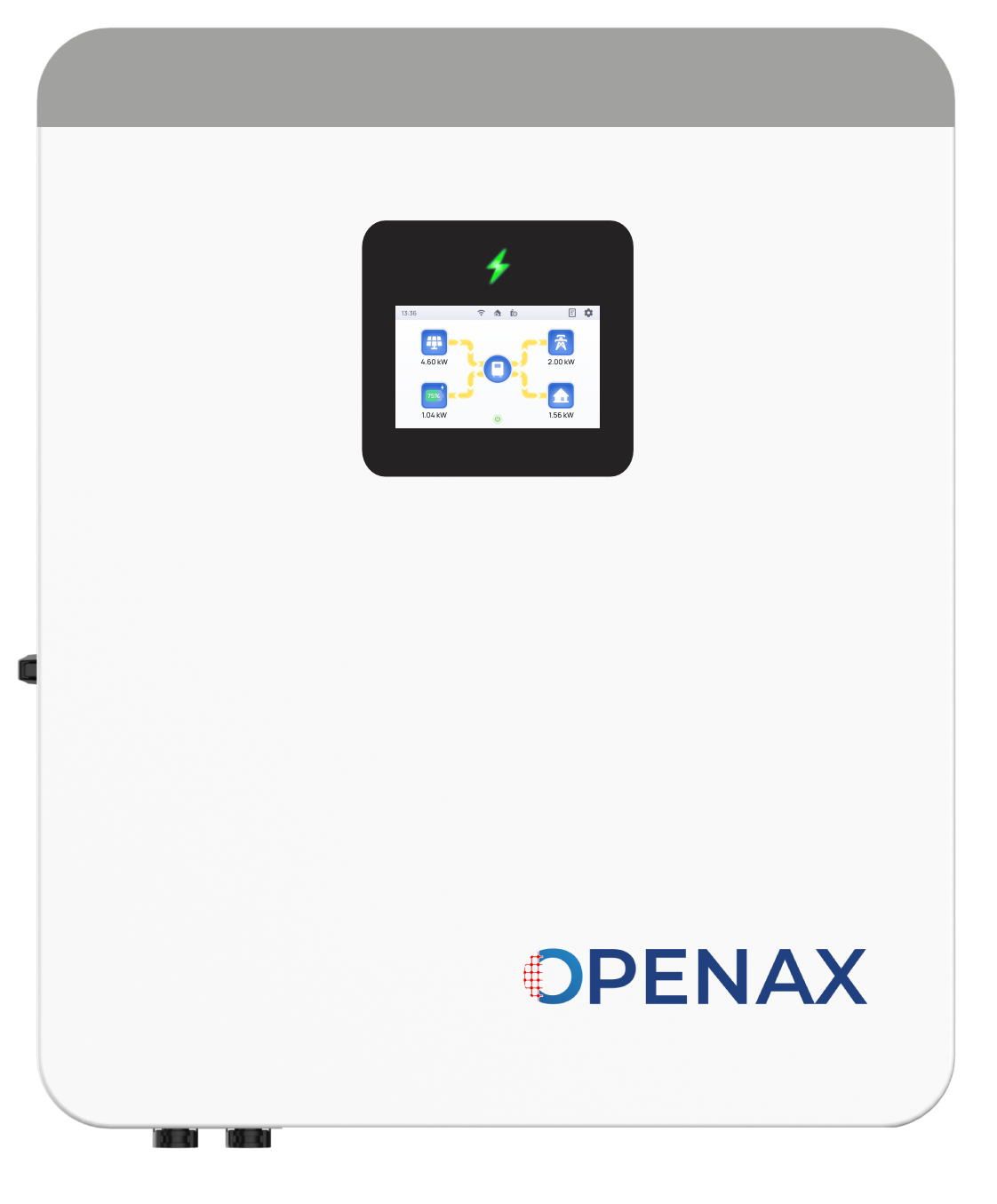

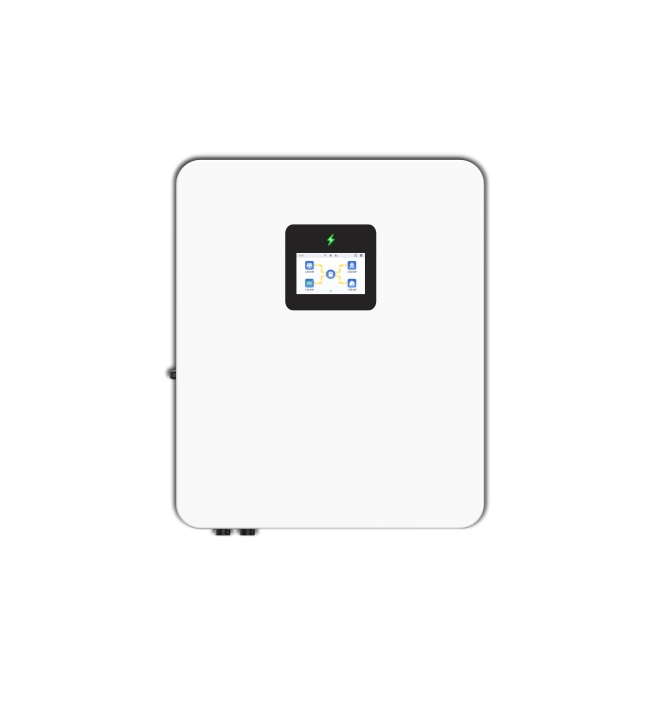

Single Phase Hybrid Storage Inverter Dual MPTT 3kW - 6kW (LV)


Single Phase Hybrid Storage Inverter Dual MPTT 3kW - 6kW (LV)

Categories: Hybrids Inverters LV Series-EN, Hybrids Inverters LV-EU Tag: Europe

  • Description
  • Review (0)

Categories

  • Description
  • Review (0)

Description

Hybrids Inverters

OX/SUN-3/3.6/3.68/4.6/5/6 LV

OPENAX Hybrids Inverters system features a user-friendly LCD color touch screen and supports high-power PV panels with an 18A input current. It offers a maximum battery charge/discharge current of 135A and is compatible with generators, smart loads, and AC coupling. Up to 9 units can operate in parallel, and the plug-and-play design ensures easy installation. With an IP65 rating, it is suitable for both indoor and outdoor use.

Categories

600W
  • Max. PV Input Power: 10 000W
  • Max. PV Voltage: 550V
  • Start-up Voltage: 90V
  • Max. Input Current: 18A/18A
  • Max. Short Circuit current: 2 × 25A
  • MPPT voltage range: 70V–540V
  • Number of MPPTs: 2
  • String per MPPT: 1/1
  • Dimensions: 377 × 452 × 206mm
  • Nominal AC Output Power: 3000W
  • Max AC Apparent Power: 3300VA
  • Max AC Output Current: 15A
  • Max Input Power From Grid : 9000W
  • Max. PV Input Power: 10 000W
  • Max. PV Voltage: 550V
  • Start-up Voltage: 90V
  • Max. Input Current: 18A/18A
  • Max. Short Circuit current: 2 × 25A
  • MPPT voltage range: 70V–540V
  • Number of MPPTs: 2
  • String per MPPT: 1/1
  • Dimensions: 377 × 452 × 206mm
  • Nominal AC Output Power: 3600W
  • Max AC Apparent Power: 3960VA
  • Max AC Output Current: 18A
  • Max Input Power From Grid : 9000W
  • Max. PV Input Power: 10 000W
  • Max. PV Voltage: 550V
  • Start-up Voltage: 90V
  • Max. Input Current: 18A/18A
  • Max. Short Circuit current: 2 × 25A
  • MPPT voltage range: 70V–540V
  • Number of MPPTs: 2
  • String per MPPT: 1/1
  • Dimensions: 377 × 452 × 206mm
  • Nominal AC Output Power: 3680W
  • Max AC Apparent Power: 3680VA
  • Max AC Output Current: 16.7A
  • Max Input Power From Grid : 9000W
  • Max. PV Input Power: 10 000W
  • Max. PV Voltage: 550V
  • Start-up Voltage: 90V
  • Max. Input Current: 18A/18A
  • Max. Short Circuit current: 2 × 25A
  • MPPT voltage range: 70V–540V
  • Number of MPPTs: 2
  • String per MPPT: 1/1
  • Dimensions: 377 × 452 × 206mm
  • Nominal AC Output Power: 4600W
  • Max AC Apparent Power: 4600VA
  • Max AC Output Current: 21A
  • Max Input Power From Grid : 9000W
  • Max. PV Input Power: 10 000W
  • Max. PV Voltage: 550V
  • Start-up Voltage: 90V
  • Max. Input Current: 18A/18A
  • Max. Short Circuit current: 2 × 25A
  • MPPT voltage range: 70V–540V
  • Number of MPPTs: 2
  • String per MPPT: 1/1
  • Dimensions: 377 × 452 × 206mm
  • Nominal AC Output Power: 5000W
  • Max AC Apparent Power: 5500VA
  • Max AC Output Current: 25A
  • Max Input Power From Grid : 9000W
  • Max. PV Input Power: 10 000W
  • Max. PV Voltage: 550V
  • Start-up Voltage: 90V
  • Max. Input Current: 18A/18A
  • Max. Short Circuit current: 2 × 25A
  • MPPT voltage range: 70V–540V
  • Number of MPPTs: 2
  • String per MPPT: 1/1
  • Dimensions: 377 × 452 × 206mm
  • Nominal AC Output Power: 6000W
  • Max AC Apparent Power: 6600VA
  • Max AC Output Current: 28.7A
  • Max Input Power From Grid : 9000W

Review

Coming Soon!
Expand all collapses
  • IP-65 rated: dust tight, temporary water immersion for high protection
  • High Temperature Performer: full power operations at even 60℃
  • Suitable for rooftops, balconies, commercial enterprises and much more
  • 100% Compliant: Rapid Shutdown (RSD) and ElectroMagnetic (EMC)
  • Protection Category: Class I
  • DC Switch: Yes
  • Anti-islanding Protection: Yes
  • AC Over Current Protection: Yes
  • PV/AC Over Voltage Protection: DC Type II, AC TYPE III
  • AC Short Circuit Protection: Yes
  • PV Reverse Protection: Yes
  • Surge Arrester: Yes
  • DC Type III, AC TYPE III (Type II Optionnal)
  • Insulation Detection: Yes
  • Leakage current Protection: Yes
  • OX-GETSOLAR-G1, OX-SM-1PWF, OX-SM-3PWF
  • Plug-and-Play design enables faster installation
  • Grid: IEC 61727/62116/61683/60068
  • NRS 097-2-1, G98, G99, VDE4105, EN50549-1/-10, AS4777.2
  • Safety: IEC/EN 62109-1&2
  • EMC: IEC/EN 61000/62920

Inverter

AC Trunk Connector

AC Male Connector

AC Female Connector

AC End Cable-M/F

AC Disconnect Tool

Plug and Play Cable-CEE7/7

  • Years Standard (for the US)
  • 5 Years Standard (for Europe) extendable to 10 years(Optional)
  • The range of output voltage and frequency may vary depending on different grid codes
  • Specifications are subject to change without advanced notice
