4-in-1 | OXM-2000/2100/2250-4T


4-in-1 | OXM-2000/2100/2250-4T

OPENAX OXM-T1 Microinverter, designed for 400-700 Watt solar panels, ideal for grid-tied solar PV systems.

  • Description
  • Review (0)

Categories

  • Description
  • Review (0)

Description

Microinverters

OXM Series

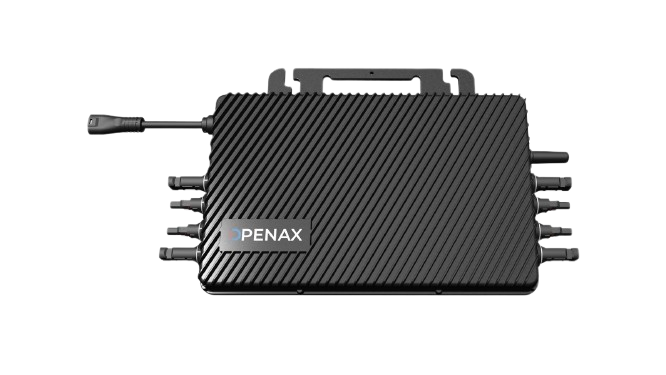

OPENAX OXM-T4 new generation microinverter OXM-2000 2100 2250W/S-T4 series is designed to accommodate high-powered PV modules, with maximum output power up to 2250 VA and maximum DC input current up to 17 A. The innovative 4-input design enables faster installation and lower cost, and makes the VM2000 2100 2250W/B-P4 series a very costeffective choice.

Categories

600W
  • Commonly Module Power: 400W to 670W+
  • Operation Voltage Range: 14V to 63V
  • Number of Maximum Power Point Trackers (MPPTs): 4MPPTs (for 4 panels)
  • Rated Output Power: 2000VA
  • Maximum Input Short Circuit Current: 25A
  • Dimensions (W x H x D): 335mm × 263mm × 40mm
  • Weight: 5.5kg
  • Communications (W or S): W = built-in encrypted WiFi / S = built-in Sub-1GHz
  • Commonly Module Power: 400W to 670W+
  • Operation Voltage Range: 14V to 63V
  • Number of Maximum Power Point Trackers (MPPTs): 4MPPTs (for 4 panels)
  • Rated Output Power: 2100VA
  • Maximum Input Short Circuit Current: 25A
  • Dimensions (W x H x D): 335mm × 263mm × 40mm
  • Weight: 5.5kg
  • Communications (W or S): W = built-in encrypted WiFi / S = built-in Sub-1GHz
  • Commonly Module Power: 400W to 700W+
  • Operation Voltage Range: 14V to 63V
  • Number of Maximum Power Point Trackers (MPPTs): 4MPPTs (for 4 panels)
  • Rated Output Power: 2250VA
  • Maximum Input Short Circuit Current: 25A
  • Dimensions (W x H x D): 335mm × 263mm × 40mm
  • Weight: 5.5kg
  • Communications (W or B): W = built-in encrypted WiFi / B = built-in Sub-1GHz

Review

Coming Soon!
Expand all collapses
  • Number of MPPTs: 4
  • WiFi setup time: 20s, fast and user-friendly
  • Compliant: Rapid Shutdown (RSD)
  • 4-in-1 design: simplifies installation and is more cost-effective
  • IP-67 rated: dust tight, temporary water immersion for ultra-high protection
  • Low Light Power Generator: starts generating from 2W. Harvests the first and last rays of sunshine
  • High Temperature Performer: full power operations at even 60℃ for continuous energy supply without interruptions
  • Multiple Applications: suitable for rooftops, gardens, fences, cabins, commercial enterprises and much more
  • 2 Connection Methods: encrypted WiFi or sub-1GHz
  • OX-GETSOLAR-G1, OX-SM-1PWF, OX-SM-3PWF
  • Plug-and-Play design enables faster installation
  • Grid: IEC 61727/62116/61683/60068
  • NRS 097-2-1, G98, G99, VDE4105, EN50549-1/-10, AS4777.2
  • Safety: IEC/EN 62109-1&2
  • EMC: IEC/EN 61000/62920

AC Trunk Cable, 12/10 AWG Cable

AC Trunk Connector

AC Male Connector

AC Female Connector

AC End Cable-M/F

AC Disconnect Tool

Plug and Play Cable-CEE7/7

  • Years Standard (for the Europe)
  • 15 Years Standard (for US) extendable to 25 years
  • Safer for rooftop solar stations with rapid shutdown compliance
  • Galvanically isolated HF transformer
  • 100% Compliant: Rapid Shutdown (RSD) and ElectroMagnetic Compatibility (EMC)
