1-in-1 | OXM-300/400/450/500-1T


1-in-1 | OXM-300/400/450/500-1T

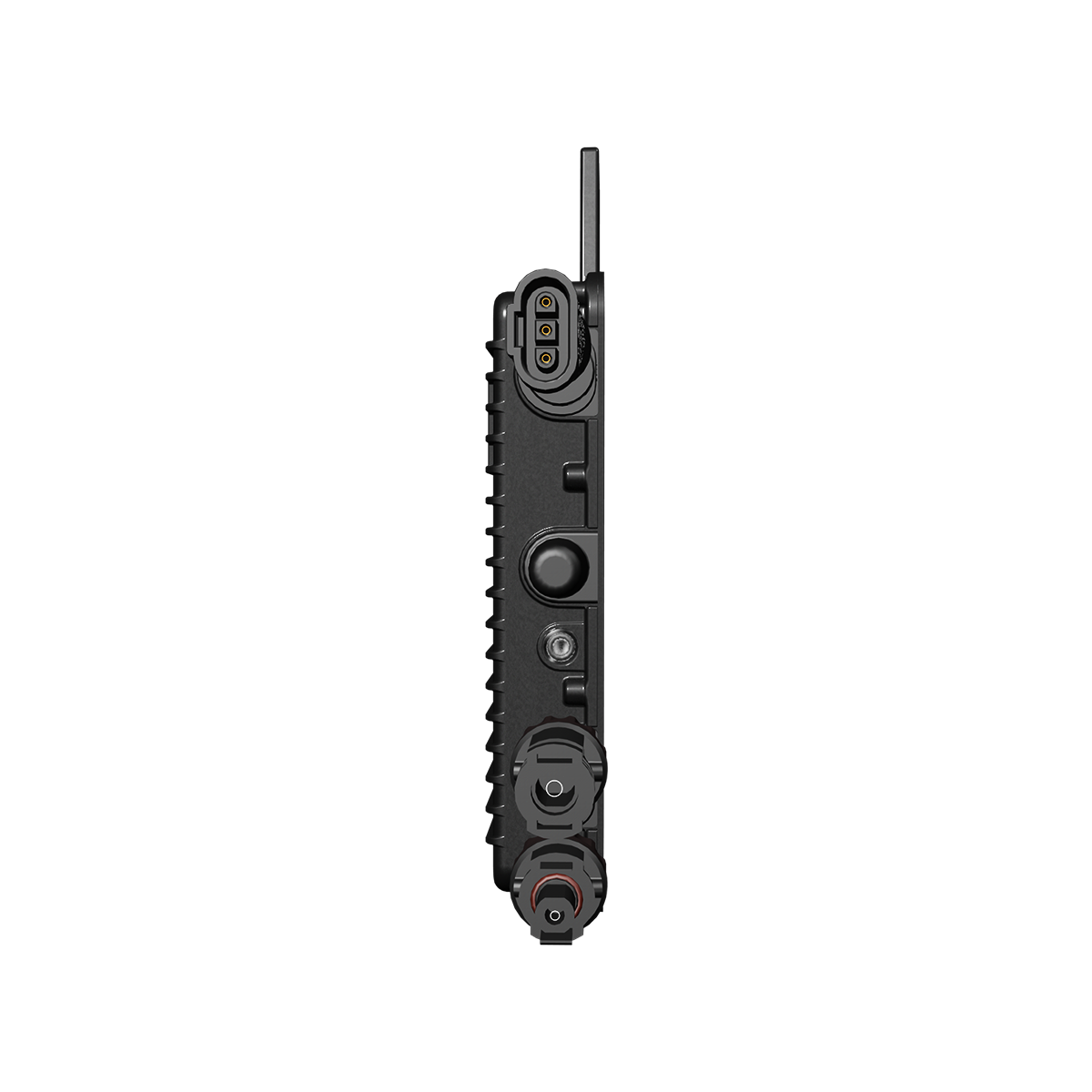

OPENAX OXM-T1 Microinverter, designed for 280-670 Watt solar panels, ideal for grid-tied solar PV systems.

  • Description
  • Review (0)

Categories

  • Description
  • Review (0)

Description

Microinverters

OXM Series

OPENAX OXM-T1 Microinverter, designed for 280-670 Watt solar panels, ideal for grid-tied solar PV systems. OPENAX offers tailored microinverter solutions for balconies, rooftops, walls, gardens, and much more. Experience OPENAX versatility and efficiency for seamless integration of diverse solar applications.

Categories

600W
  • Common Module Power: 280W to 470W+
  • Operating Voltage Range: 14V to 63V
  • Number of Maximum Power Point Trackers (MPPTs): 1 MPPT (for 1 panel)
  • Rated Output Power: 350VA
  • Maximum Output Overcurrent Protection: 6.5A
  • Dimensions in mm (W x H x D): 181mm x 203mm x 31mm
  • Weight in kilograms: 1.75kg
  • Communications (W or S): W = built-in encrypted WiFi / S = built-in Sub-1GHz
  • Common Module Power: 320W to 540W+
  • Operating Voltage Range: 14V to 63V
  • Number of Maximum Power Point Trackers (MPPTs): 1 MPPT (for 1 panel)
  • Rated Output Power: 400VA
  • Maximum Output Overcurrent Protection: 6.5A
  • Dimensions in mm (W x H x D): 181mm x 203mm x 31mm
  • Weight in kilograms: 1.75kg
  • Communications (W or S): W = built-in encrypted WiFi / S = built-in Sub-1GHz
  • Common Module Power: 360W to 600W+
  • Operating Voltage Range: 14V to 63V
  • Number of Maximum Power Point Trackers (MPPTs): 1 MPPT (for 1 panel)
  • Rated Output Power: 450VA
  • Maximum Output Overcurrent Protection: 6.5A
  • Dimensions in mm (W x H x D): 181mm x 203mm x 31mm
  • Weight in kilograms: 1.75kg
  • Communications (W or S): W = built-in encrypted WiFi / S = built-in Sub-1GHz
  • Common Module Power: 400W to 670W+
  • Operating Voltage Range: 14V to 63V
  • Number of Maximum Power Point Trackers (MPPTs): 1 MPPT (for 1 panel)
  • Rated Output Power: 500VA
  • Maximum Output Overcurrent Protection: 6.5A
  • Dimensions in mm (W x H x D): 181mm x 203mm x 31mm
  • Weight in kilograms: 1.75kg
  • Communications (W or S): W = built-in encrypted WiFi / S = built-in Sub-1GHz

Review

Coming Soon!
Expand all collapses
  • Low Light Power Generator: it only takes is 2W to run OPENAX Microinverters adding 3 extra hours per day of production compared to the competition
  • High Temperature Performer: full power operations at even 55℃ for continuous energy supply without interruptions
  • Multiple Applications: suitable for rooftops, balconies, gardens, fences, cabins, commercial enterprises and much more
  • 2 Connection Methods: encrypted WiFi or sub-1Ghz
  • Grid connection in 20 seconds, one-click, simple operation
  • OX-GETSOLAR-G1, OX-SM-1PWF, OX-SM-3PWF
  • Plug-and-Play design enables faster installation
  • Grid: IEC 61727/62116/61683/60068
  • NRS 097-2-1, G98, G99, VDE4105, EN50549-1/-10, AS4777.2
  • Safety: IEC/EN 62109-1&2
  • EMC: IEC/EN 61000/62920

AC Trunk Cable, 12/10 AWG Cable

AC Trunk Connector

AC Male Connector

AC Female Connector

AC End Cable-M/F

AC Disconnect Tool

Plug and Play Cable-CEE7/7

  • Years Standard (for the Europe)
  • 15 Years Standard (for US) extendable to 25 years
  • Safer for rooftop solar stations with rapid shutdown compliance
  • Galvanically isolated HF transformer
  • 100% Compliant: Rapid Shutdown (RSD) and ElectroMagnetic Compatibility (EMC)
