2-in-1 | OXM-600/700/800/900/1000-2T


2-in-1 | OXM-600/700/800/900/1000-2T

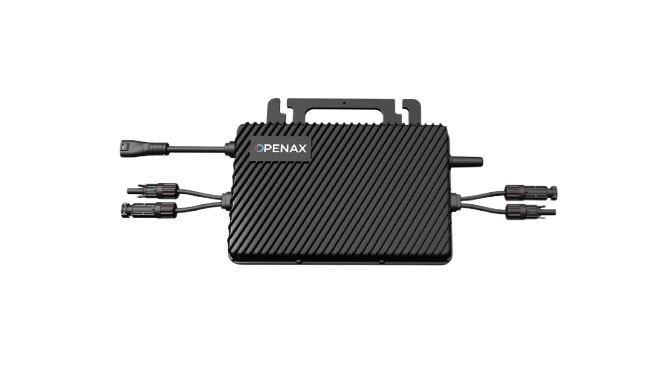

OPENAX OXM-T2 Microinverter, designed for 240-680 Watt per solar panel, ideal for grid-tied solar PV systems.

Categories

Description

Microinverters

OXM Series

OPENAX OXM-T2 Microinverter uphold enhanced reliability standards, undergoing rigorous testing: over 4000 hours of full-load high temperature testing, more than 3200 hours of outdoor low-light cycle testing, and boasting a mean time between failures (MTBF) exceeding 10000 hours of power-on testing. OPENAX OXM-T2 Microinverters are Bureau Veritas Certified as PV Rapid Shutdown equipment. Properly installed VaySunic Microinverters conform to regulations around the world.

OPENAX offers tailored microinverter solutions for balconies, rooftops, walls, gardens, and much more. Experience OPENAX versatility and efficiency for seamless integration of diverse solar applications.

Categories

600W
  • Commonly Module Power: 240W to 410W+
  • Operation Voltage Range: 14V to 63V
  • Number of Maximum Power Point Trackers (MPPTs): 2MPPTs (for 2 panels)
  • Rated Output Power: 600VA
  • Maximum Output Overcurrent Protection: 6.5A
  • Dimensions (W x H x D): 274mm × 222mm × 36.5mm
  • Weight: 3.22kg
  • Communications (W or S): W = built-in encrypted WiFi / S = built-in Sub-1GHz
  • Commonly Module Power: 270W to 460W+
  • Operation Voltage Range: 14V to 63V
  • Number of Maximum Power Point Trackers (MPPTs): 2MPPTs (for 2 panels)
  • Rated Output Power: 700VA
  • Maximum Output Overcurrent Protection: 6.5A
  • Dimensions (W x H x D): 274mm × 222mm × 36.5mm
  • Weight: 3.22kg
  • Communications (W or S): W = built-in encrypted WiFi / S = built-in Sub-1GHz
  • Commonly Module Power: 330W to 550W+
  • Operation Voltage Range: 14V to 63V
  • Number of Maximum Power Point Trackers (MPPTs): 2MPPTs (for 2 panels)
  • Rated Output Power: 800VA
  • Maximum Output Overcurrent Protection: 6.5A
  • Dimensions (W x H x D): 274mm × 222mm × 36.5mm
  • Weight: 3.22kg
  • Communications (W or S): W = built-in encrypted WiFi / S = built-in Sub-1GHz
  • Commonly Module Power: 350W to 610W+
  • Operation Voltage Range: 14V to 63V
  • Number of Maximum Power Point Trackers (MPPTs): 2MPPTs (for 2 panels)
  • Rated Output Power: 900VA
  • Maximum Output Overcurrent Protection: 6.5A
  • Dimensions (W x H x D): 274mm × 222mm × 36.5mm
  • Weight: 3.22kg
  • Communications (W or S): W = built-in encrypted WiFi / S = built-in Sub-1GHz
  • Commonly Module Power: 390W to 680W+
  • Operation Voltage Range: 14V to 63V
  • Number of Maximum Power Point Trackers (MPPTs): 2MPPTs (for 2 panels)
  • Rated Output Power: 1000VA
  • Maximum Output Overcurrent Protection: 6.5A
  • Dimensions (W x H x D): 274mm × 222mm × 36.5mm
  • Weight: 3.22kg
  • Communications (W or S): W = built-in encrypted WiFi / S = built-in Sub-1GHz

Review

Coming Soon!
  • IP-67 rated: dust tight, temporary water immersion for ultra-high protection
  • Low Light Power Generator: it only takes 2W to run VaySunic Microinverters, adding 3 extra hours per day of production compared to the competition
  • High Temperature Performer: full power operations at even 65℃ for continuous energy supply without interruptions
  • Multiple Applications: suitable for rooftops, balconies, gardens, fences, cabins, commercial enterprises and much more
  • 2 Connection Methods: encrypted WiFi or sub-1GHz
  • 100% Compliant: Rapid Shutdown (RSD) and ElectroMagnetic Compatibility (EMC)
  • 15-year standard warranty, extendable to 25 years
  • Grid connection in 20 seconds, one-click, simple operation
  • Plug-and-Play design enables faster installation
  • OX-GETSOLAR-G1, OX-SM-1PWF, OX-SM-3PWF
  • Plug-and-Play design enables faster installation
  • Grid: IEC 61727/62116/61683/60068
  • NRS 097-2-1, G98, G99, VDE4105, EN50549-1/-10, AS4777.2
  • Safety: IEC/EN 62109-1&2
  • EMC: IEC/EN 61000/62920

AC Trunk Cable, 12/10 AWG Cable

AC Trunk Connector

AC Male Connector

AC Female Connector

AC End Cable-M/F

AC Disconnect Tool

Plug and Play Cable-CEE7/7

  • Years Standard (for the Europe)
  • 15 Years Standard (for US) extendable to 25 years
  • Safer for rooftop solar stations with rapid shutdown compliance
  • Galvanically isolated HF transformer
  • 100% Compliant: Rapid Shutdown (RSD) and ElectroMagnetic Compatibility (EMC)
